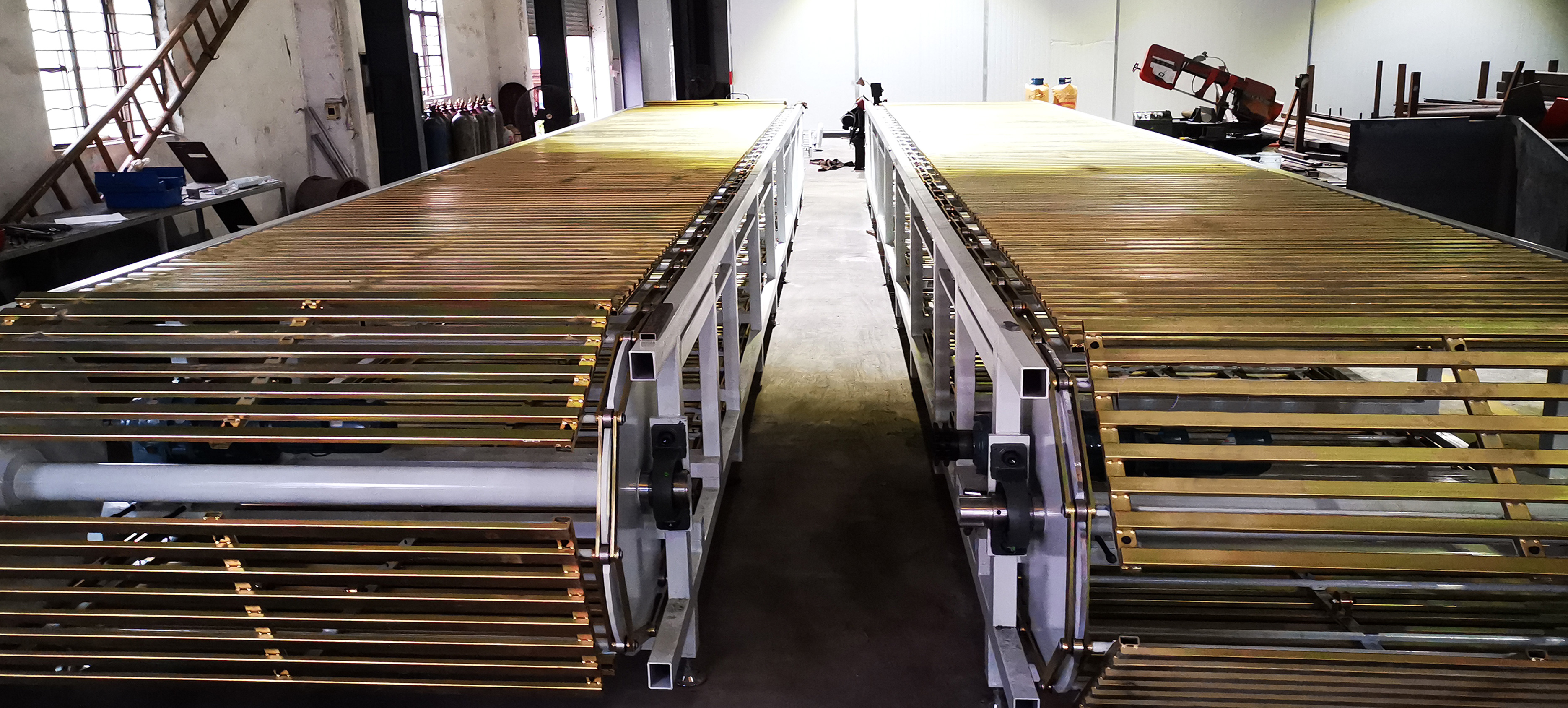

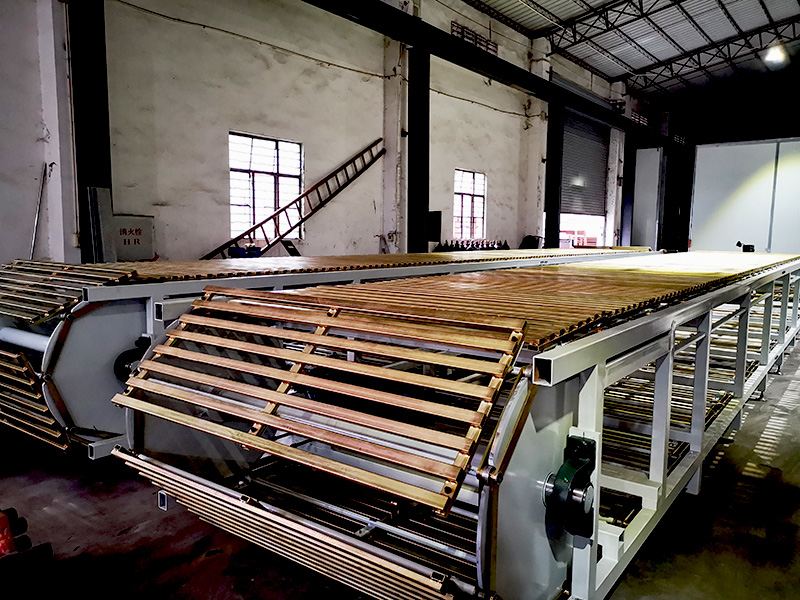

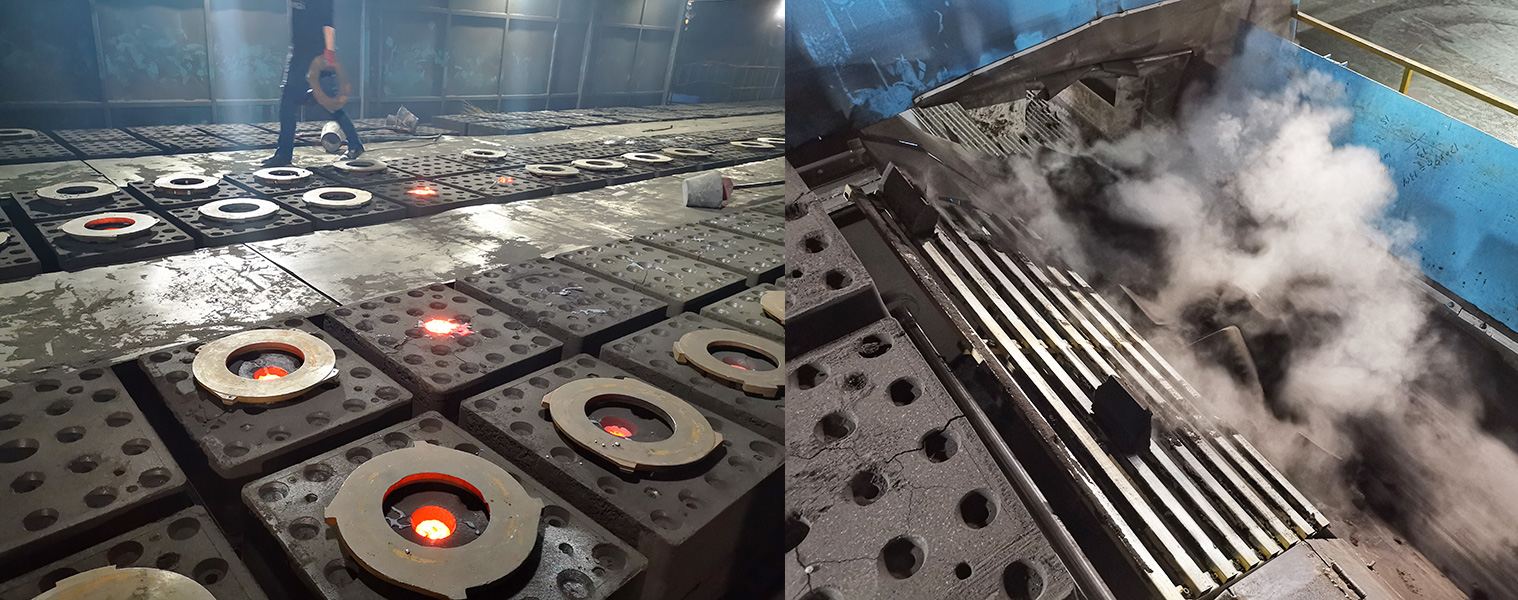

A type of sand mold conveying and pouring line similar to a track, which transmits the sand mold through the rotation of the rotating discs at the front and rear ends. During the conveying process, the sand mold is poured and cooled, and the tail is connected to a high-temperature resistant cooling belt. The cooled sand mold automatically falls into the high-temperature resistant old sand cooling belt through the circular rotation of the production line. Finally, the sand mold and castings will be transported together to the vibrating sand falling equipment.
1) This type of machine can customize specific sand box sizes according to specific needs;
2) Use # 46 anti wear hydraulic oil;
3) Double sided steel or aluminum molds are required;
4) Fully automatic one button intelligent continuous or single cycle operation molding, automatic fault detection and alarm, emergency locking and safety warning;
5) Language switching can be selected according to regional needs;
6) Hydraulic compaction through air pressure and sand addition;

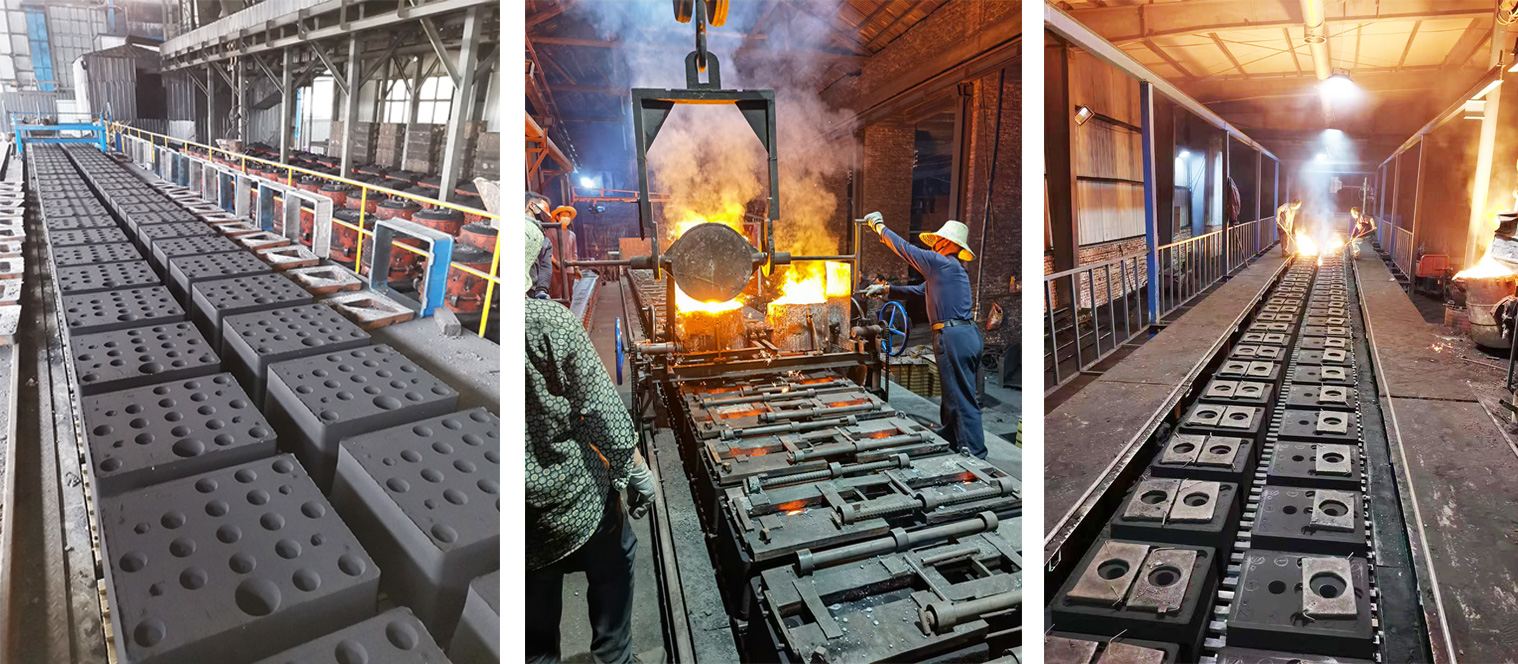

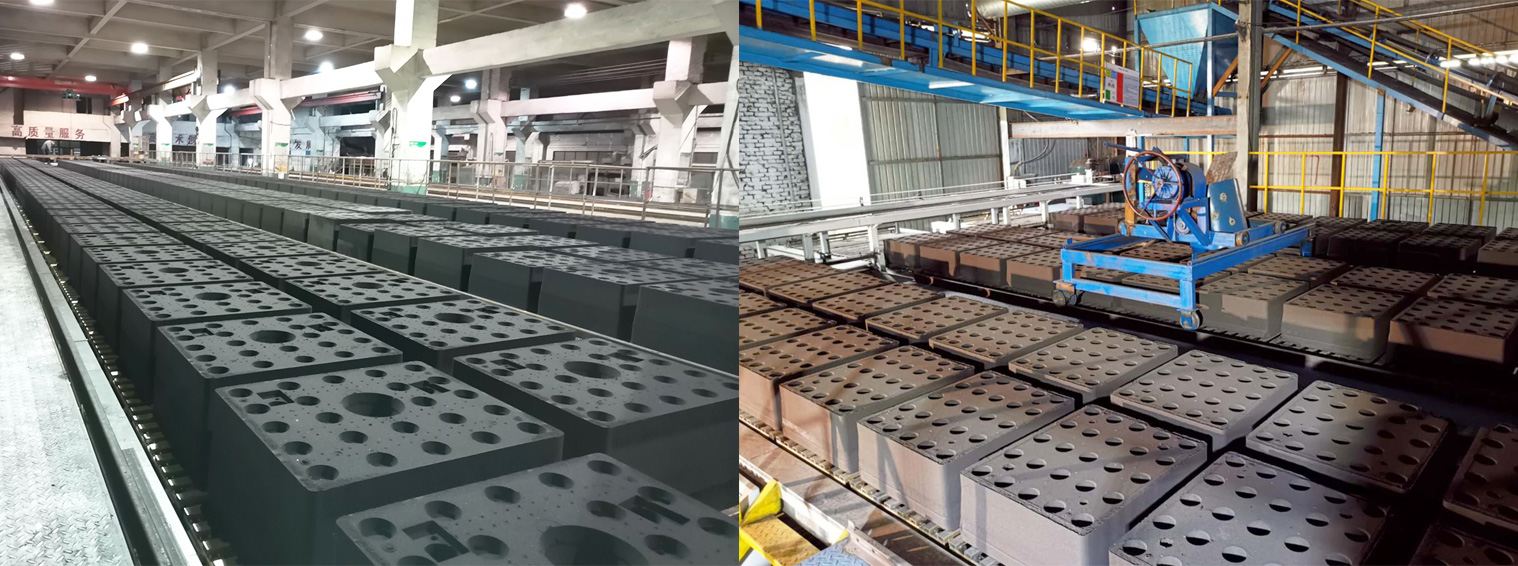

1. This pouring line is suitable for sand mold sizes ranging from 420mm to 710mm, with a single pouring line length not exceeding 42 meters. When the molding machine is molding, pouring is also carried out synchronously. Normally, it is used alternately with A and B pouring lines, with one pouring line used for pouring and the other for cooling.

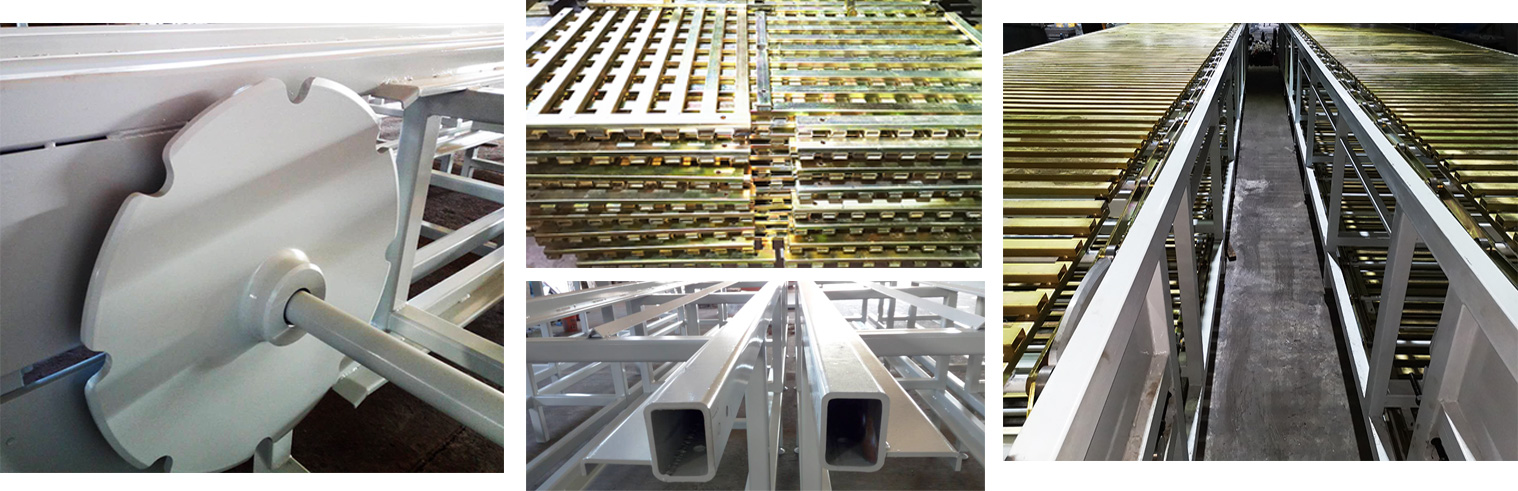

2. The pouring line is mainly composed of PLC electric control, transmission chain, sand mold support plate, track, rotating disc, rotating shaft, and sand mold pushing device; In terms of production technology, we will perform special treatments such as quenching on the transmission chain, rotating disc, and rotating shaft to ensure the hardness and wear resistance of the object; The sand mold tray is mainly treated with rust prevention, and in terms of structural design, it is also very convenient and fast for the disassembly and replacement of the support plate, and stainless steel base plates can be added to the original support plate;
3. In Chinese casting enterprises, we have provided some users with the production of three pouring lines and a molding machine. According to the industrial electricity consumption in China, pouring at night can save a lot of electricity costs. Therefore, we have designed a single machine with three pouring lines based on user needs, while ensuring the stable operation of the pouring line. The purpose is to meet the user's needs of molding during the day and pouring at night, Make more sand molds during the day to increase production. After completing the sand mold casting for daytime molding, the molding and casting can still be carried out simultaneously according to the normal operation mode;
4. Most of the casting lines are used for the production of gray iron castings that are lightweight and do not require the placement of box frames during the casting process. The main purpose is to replace manual placement of sand molds to reduce labor and improve the working environment of the casting workshop. At the same time, dust removal systems and casting devices can also be installed on the production line.

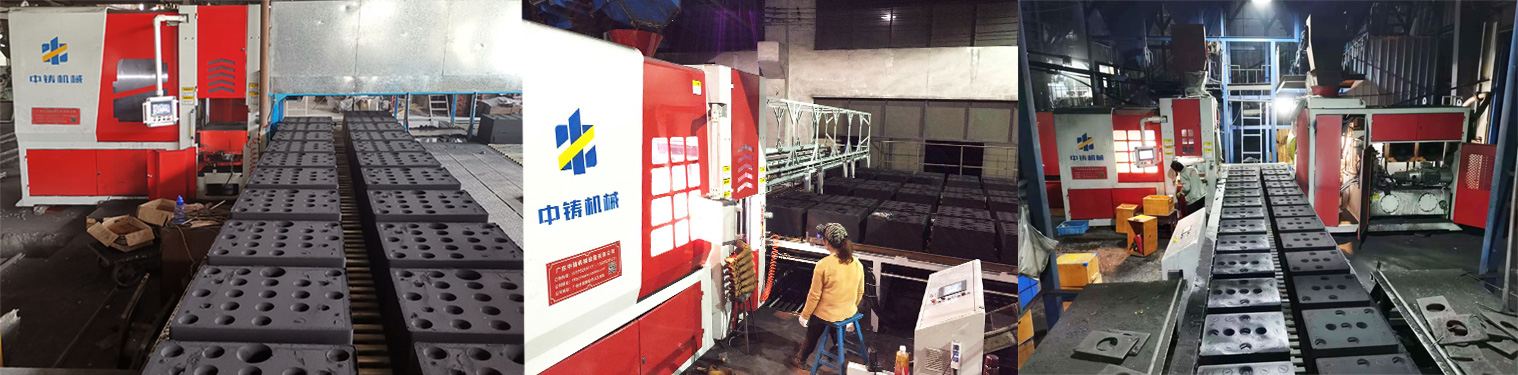

5. After the sand mold is shaped, the molding machine pushes the cylinder to directly push the sand mold onto the pouring line support plate, and then the sand mold is moved to the designated position by the sand mold pushing device of the pouring line.
As of 2023, we have produced this tracked conveyor pouring production line for 26 casting enterprises. Based on the long-term usage of users, the pouring line technology is very mature and has long-term stability and reliability for casting production!
