Drive pouring line of track support plate

  • Introduction to Features :

  • This is a pouring production line equipped with a horizontal molding machine that automatically transports and places sand molds, without the need for manual labor such as transporting sand molds. Compared to many casting enterprises choosing this casting production line during peak electricity consumption periods to save electricity costs, and considering the practicality of the casting production process with low production costs, they can use a horizontal molding machine to complete all sand mold production during the day, and pour and cool the sand mold at night, making the operation method more flexible. However, the level of automation is not ideal and requires manual placement of sand box frames and covers a relatively large workshop area.

  • Detailed remarks:

  • 1) This type of machine can customize specific sand box sizes according to specific needs;
    2) Use # 46 anti wear hydraulic oil;
    3) Double sided steel or aluminum molds are required;
    4) Fully automatic one button intelligent continuous or single cycle operation molding, automatic fault detection and alarm, emergency locking and safety warning;
    5) Language switching can be selected according to regional needs;
    6) Hydraulic compaction through air pressure and sand addition;

    7) You can choose the appearance color of the spraying equipment according to user needs;

List of General Model Parameters:
Picture and Text Introduction:

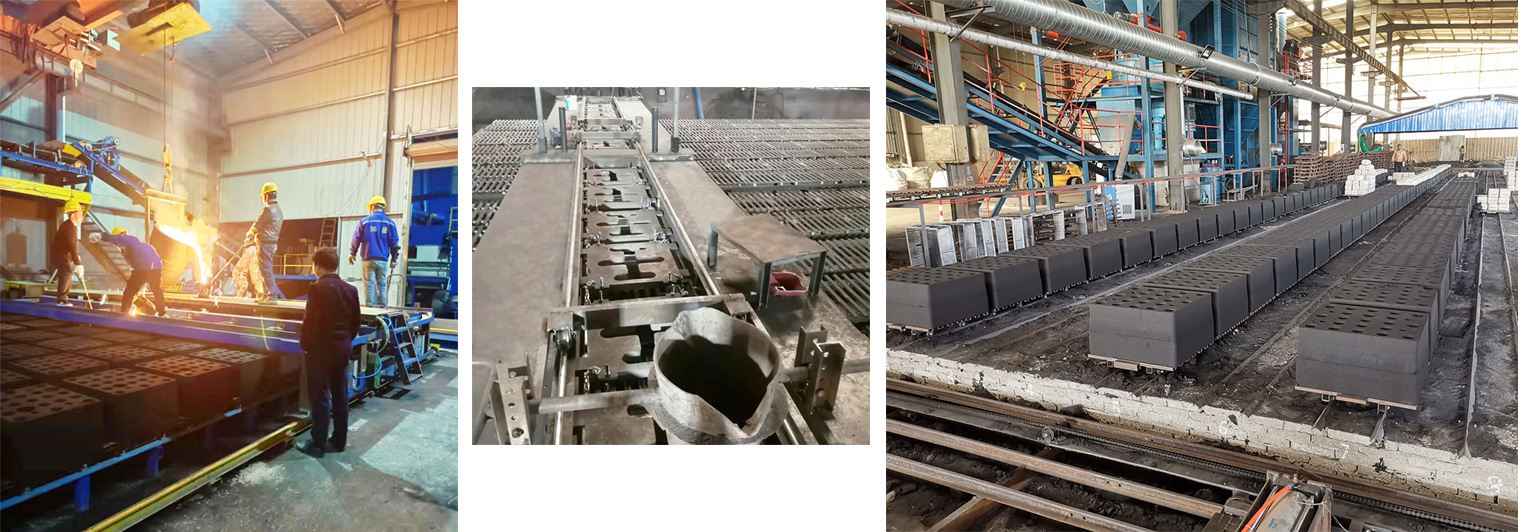

  • Pouring production line


    1.  This casting production and pouring line mainly relies on laying guide rails on the ground, which are driven by servo motors and pushed by cylinders through PLC programs to transport the completed sand mold and bearing trolley to the set track, thus completing the automatic transmission of the sand mold and implementing pouring and other operations on the track;

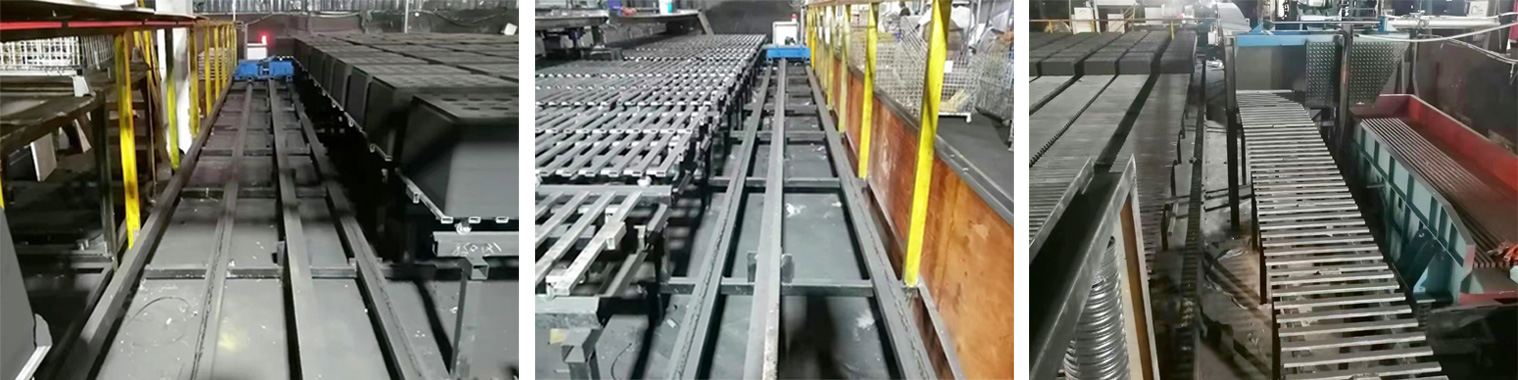

    Sand mold casting line


    (  Close to the front-end assembly and replacement channel of the molding machine, the assembly and replacement channel at the tail end, and the track of the trolley carrying the sand mold for recycling  )


    2.   Servo transfer cars are designed and installed at both ends of the head and tail of the guide rail. When the poured sand mold enters the recycling track together with the bearing car, the sand mold and castings will be pushed into the vibration sand falling equipment by the pneumatic pushing cylinder, and the bearing car will be transmitted to the horizontal molding machine lifting device at the front end head one by one through the recycling track for further use;

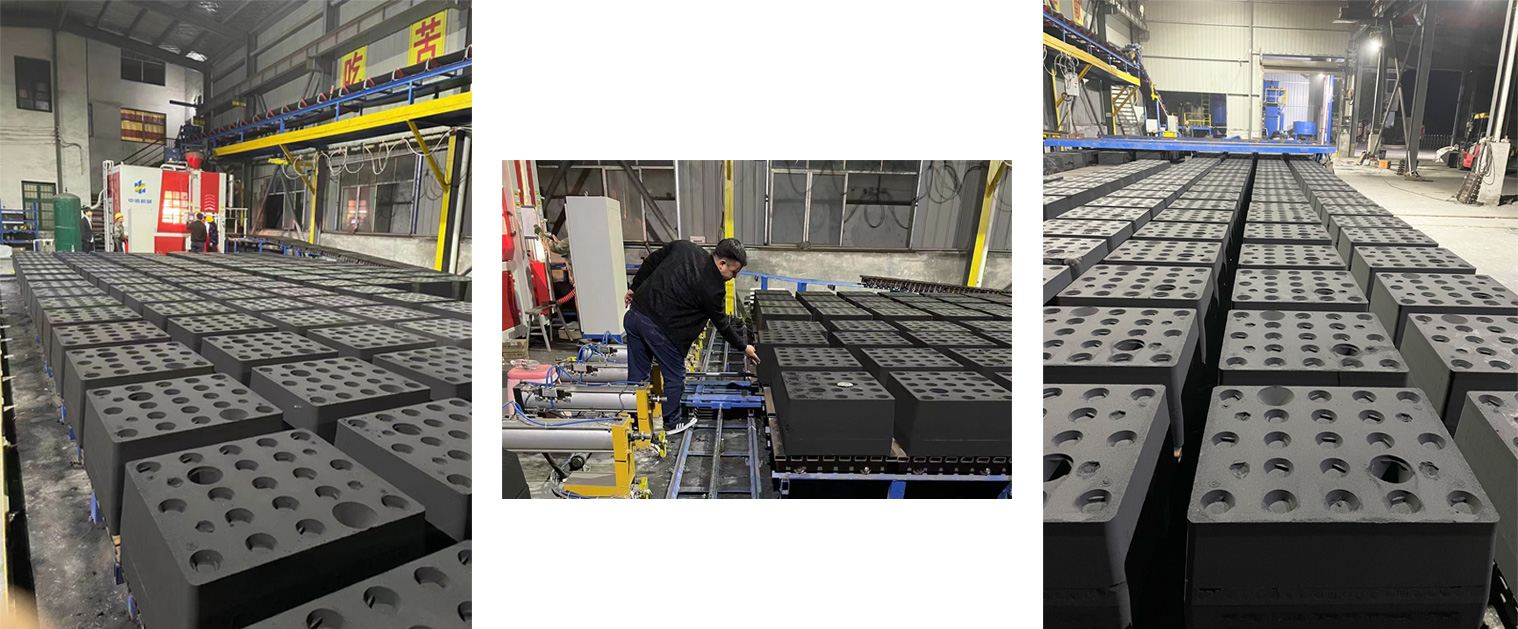

    Automated sand mold pouring line


    3.   There are two pouring methods for this pouring line, and the most commonly used solution is to install a walking crane on the pouring track, which is convenient for pouring workers to stand on the crane platform to pour the sand mold. Additionally, we have designed a fixed device on the crane that can quickly place heavy iron and box frames on the sand mold through worker operation; The second scenario is to adjust the program settings of the electric control group when the workshop space is sufficient, and reserve enough space for the track where the sand mold is placed to allow workers to directly pour and place the weight iron;

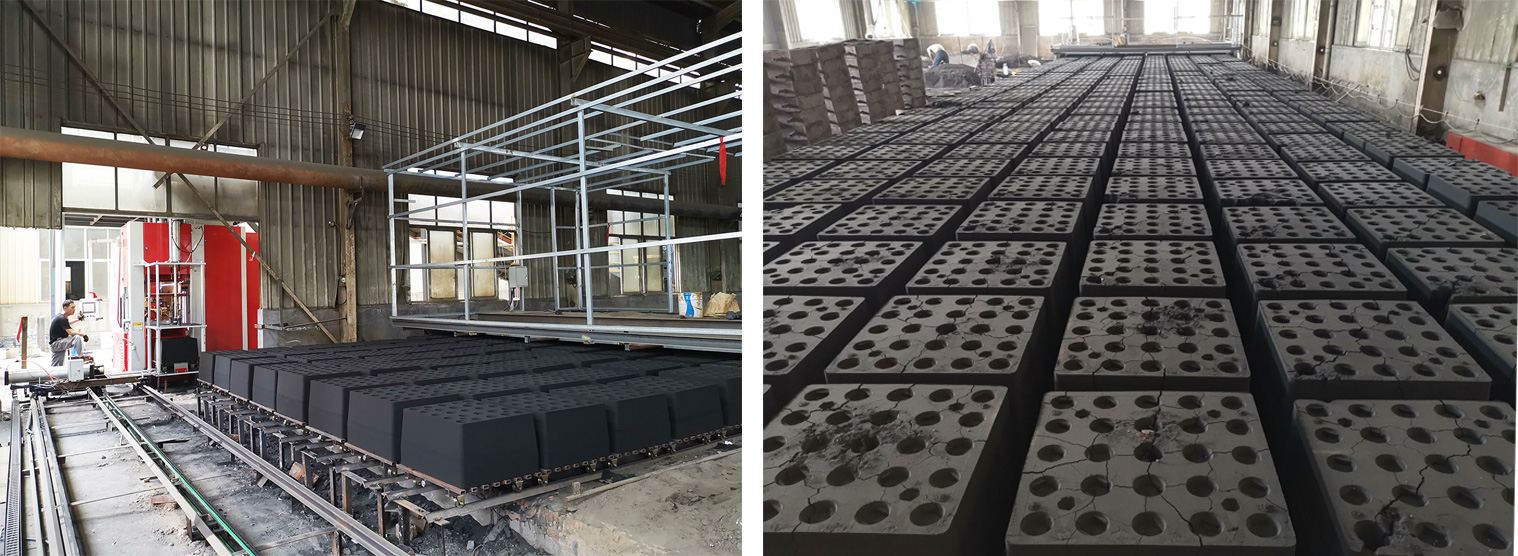

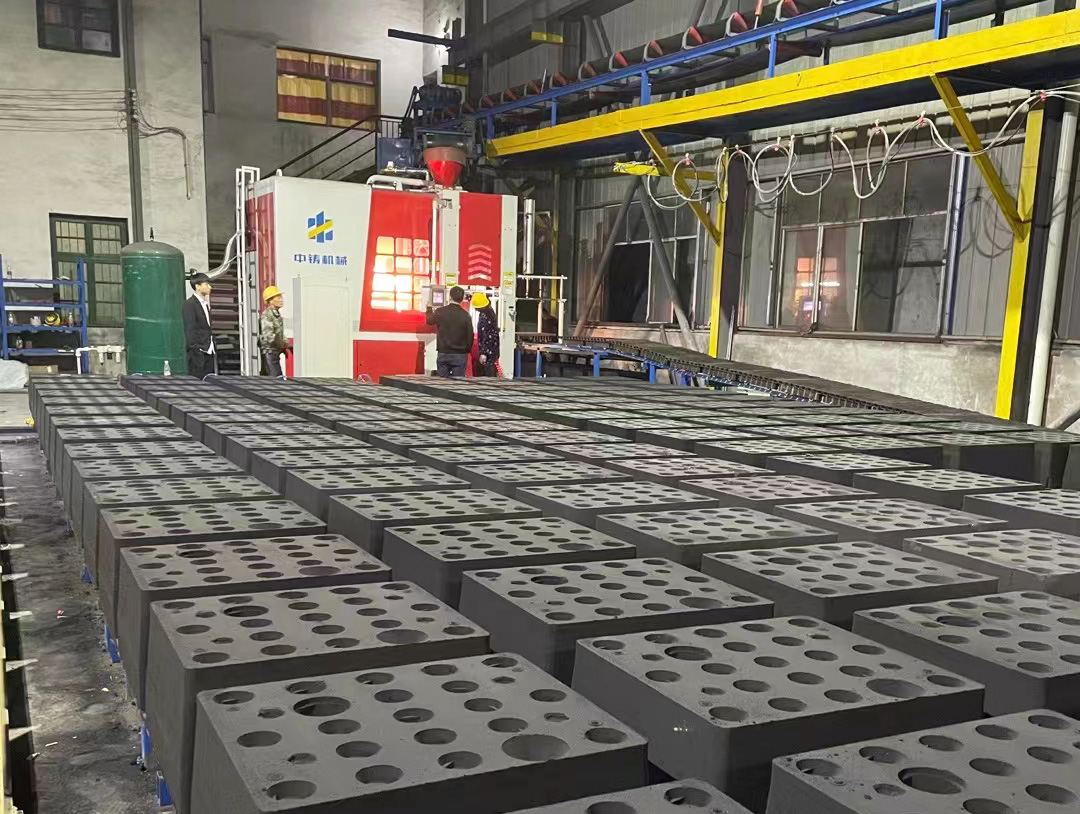

    Horizontal pouring line


    4.  During the normal production process, the sand mold and bearing trolley that have completed the molding at the front end are transferred one by one to the tail under the push of the cylinder, and the sand mold and bearing trolley that have been poured and cooled at the tail end are also replaced one by one. Normally, after the pouring is completed, the sand mold will be placed on the track for cooling, and the operator will switch the electric control group program to transfer the sand mold to other tracks, replacing the sand mold and bearing trolley that have already been poured and cooled.




    （If you have any questions about the pouring line, you can watch our video or contact us.）
