An automated casting and molding production line for bearing seat castings

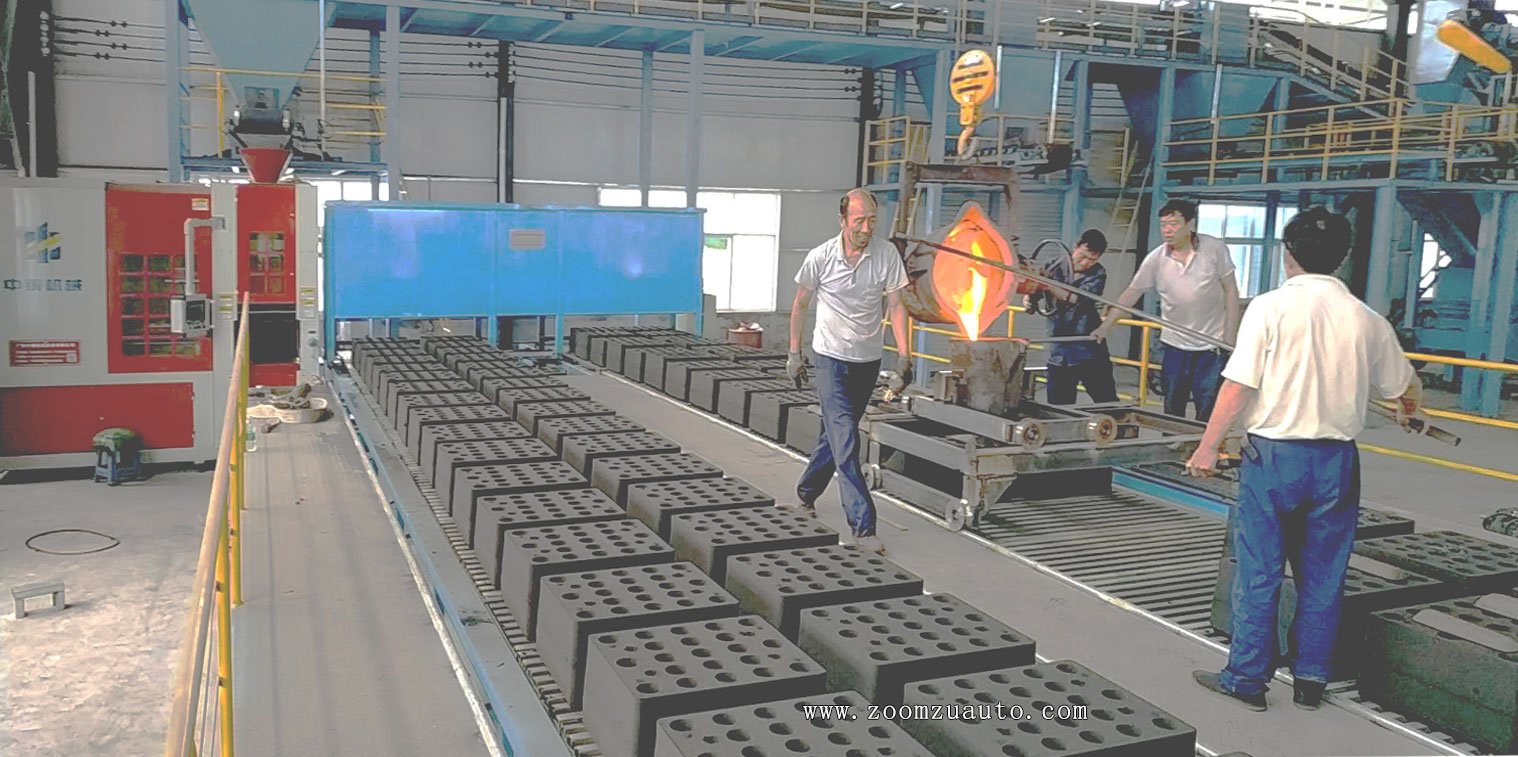

In 2017, we installed an automated casting molding production line for a company that produces casting bearing seat castings. It is used to produce various models and specifications of cast iron bearing seats and outer spherical bearing castings. The main supporting equipment includes a 30T hourly processing capacity casting sand mixing treatment equipment, a conventional horizontal parting molding machine with a size of 450mm X 550mm sand box, and a track conveyor sand mold casting line; The automated molding speed per hour is about 95 sand molds; The molding speed of some outer bearing seats that require the placement of coated sand cores is about 65 molds per hour; The user of the casting enterprise has self-made a track mobile pouring cart, with two 42 meter track conveyor sand mold pouring lines A and B used in rotation. After the molding machine completes the sand mold shaping and placement of the A pouring line, the electric control program switches to shape and transport the sand mold of the B pouring line. At the same time, the A pouring line filled with sand molds is poured and cooled. A single 42 meter track conveyor pouring line can accommodate 78 sand molds;

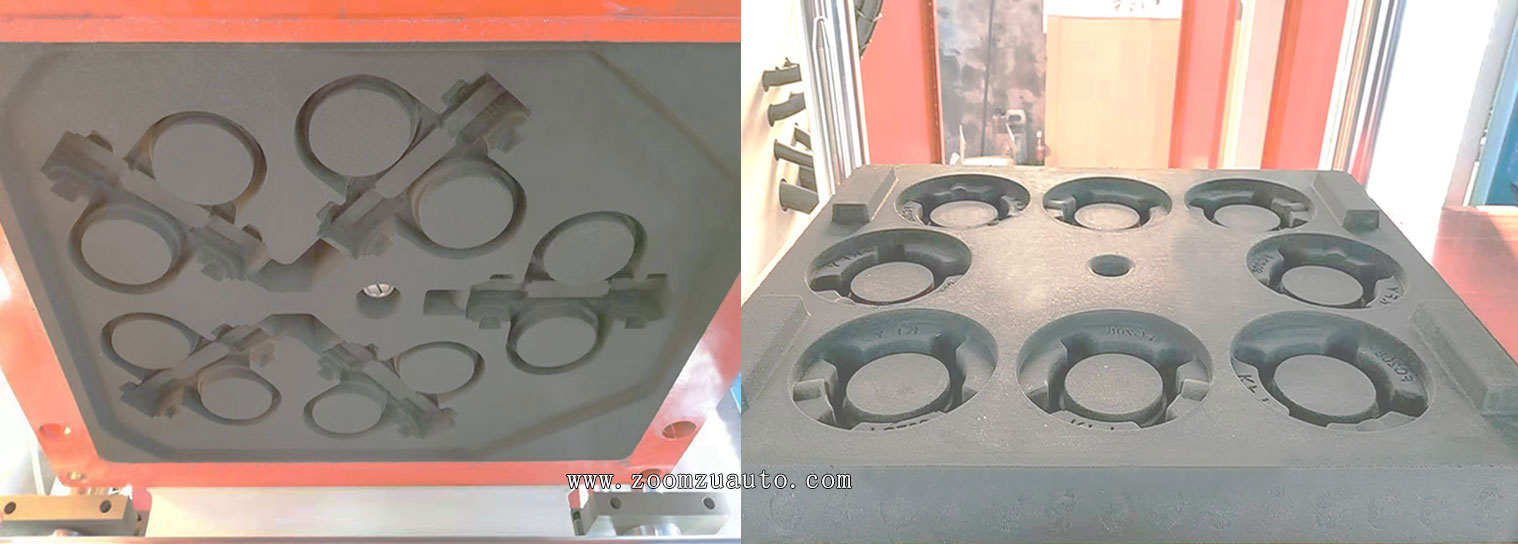

The Effect of Sand Mold Automation Modeling for P-type Bearing Seat and FC Convex Circular Bearing Seat

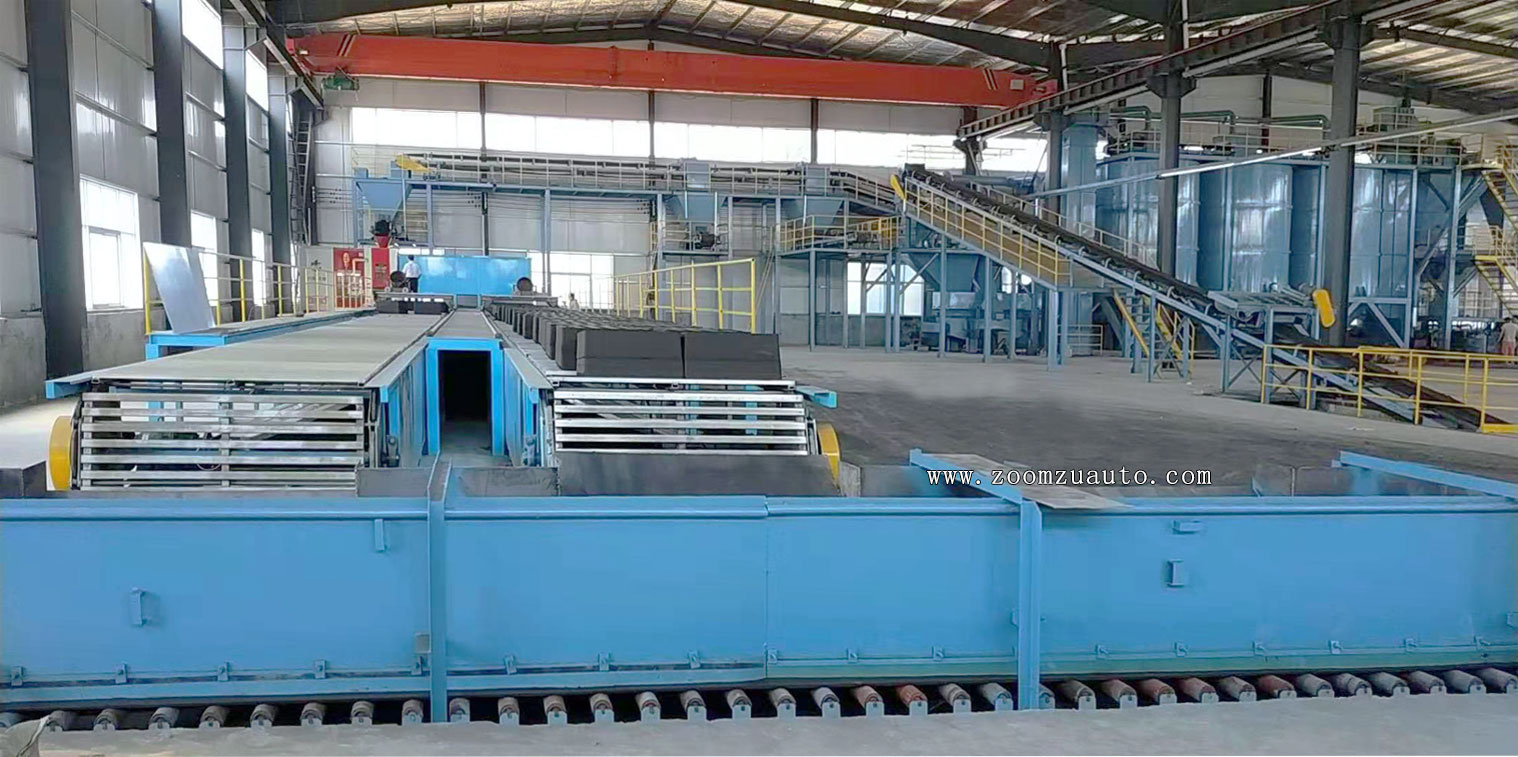

The casting workshop after the installation of the automated casting molding production line was photographed during the equipment debugging period;

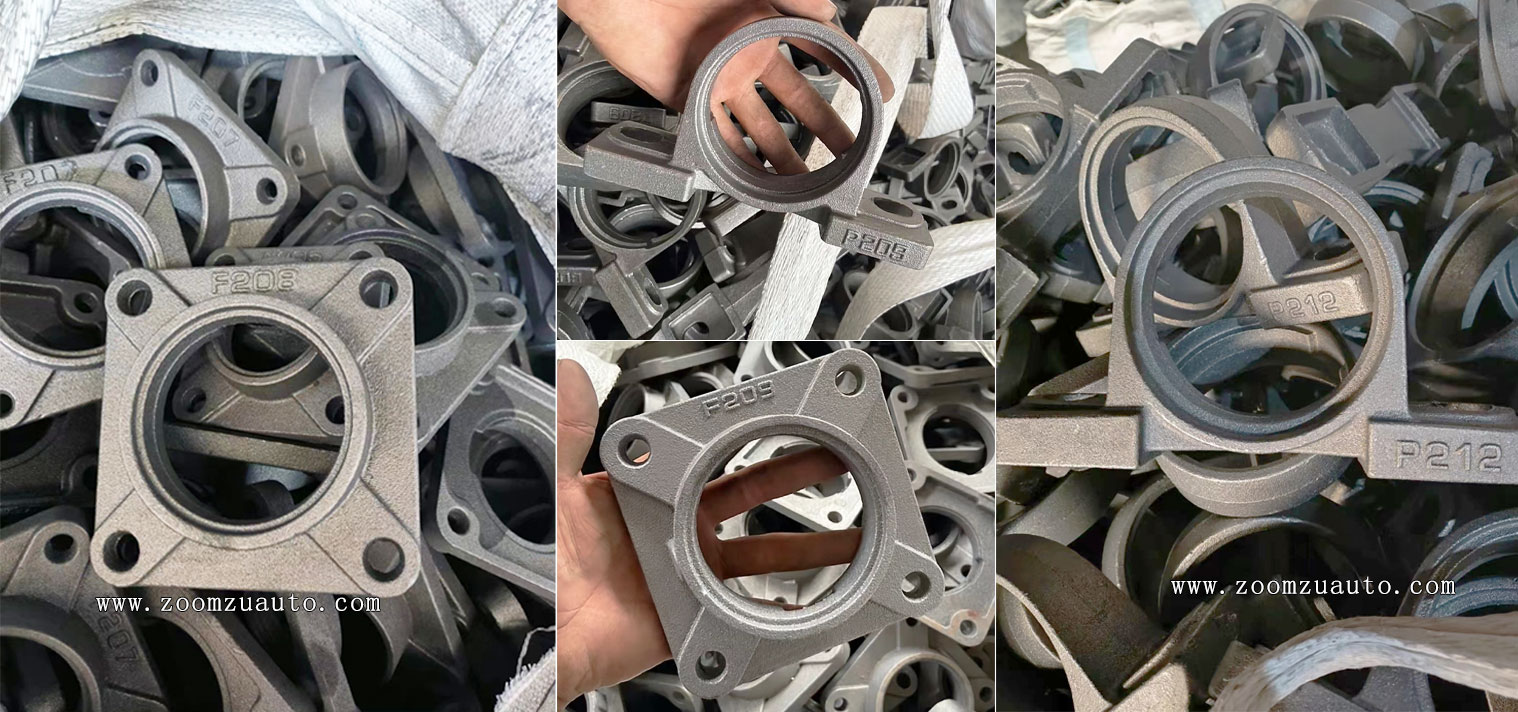

The bearing seat is a component used to connect bearings and equipment. The above picture shows the F-shaped bearing seat castings and P-shaped bearing seat castings produced by the casting enterprise using a horizontal parting automated casting molding line. The main materials are gray iron (HT100, HT150, HT200, HT250) and ductile iron (QT450). If you need to purchase this type of casting or learn more about the casting molding production of bearing seat castings, please contact us;
